Advanced Air Purification
for Life Sciences and in vitro fertilization (IVF) Labs

AIR QUALITY - Key factor for an optimal environment

The presence of air contaminants in the in vitro fertilization (IVF) laboratory, procedure rooms, and working environment has detrimental effects on pregnancy rates

SOURCES

cleaning agents, plasticware, media, liquids, furnishings, equipment, personnel and common air pollution.


CONTAMINANTS

styrene, acetone, benzene, toluene, octane, n-Decane, freon, acetaldehyde, nonane, methylcyclohexane, ethanol, isopropyl alcohol, hexachlorocyclohexane, lead, carbon.





Working closely with healthcare professionals allowed us to understand their strict requirements and design highly efficient air purification systems that meet and exceed cleanroom specifications for particulate and microorganism contamination in IVF laboratories.

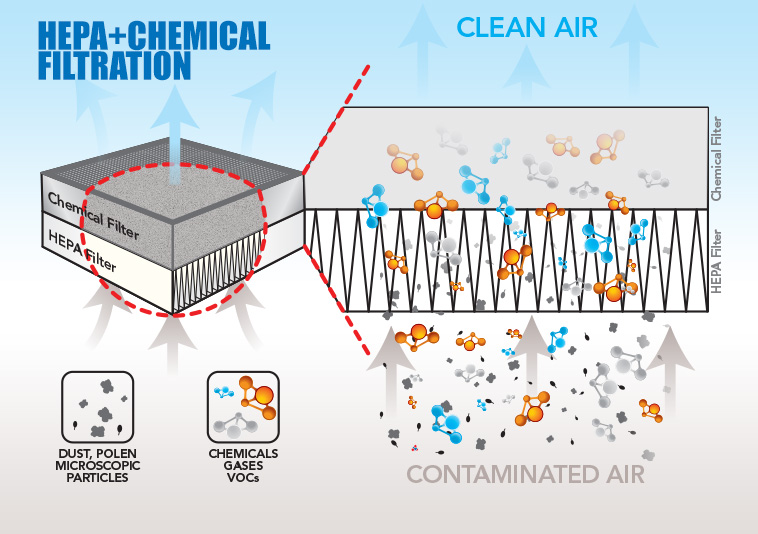

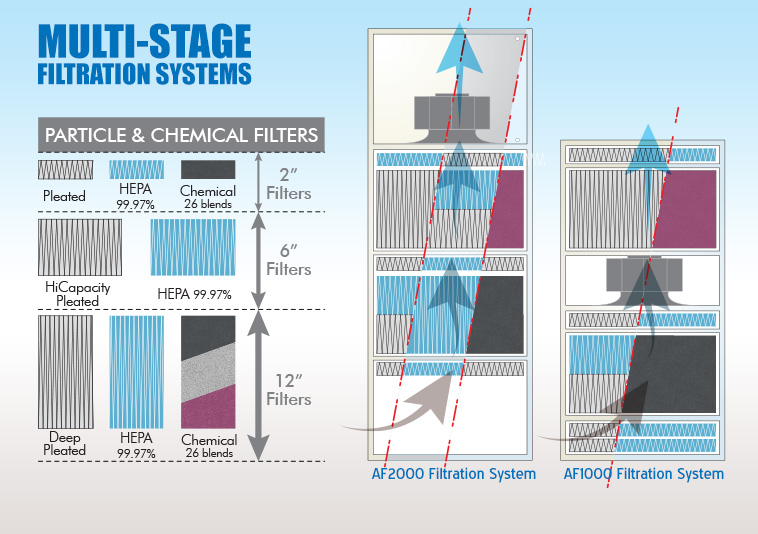

MULTI-STAGE AIR PURIFICATION SYSTEMS


Although very effective against very fine particles,
HEPA filters do not filter out gasses and odor molecules.


Our refillable chemical filters use carefully formulated filtration media blends to remove odors, chemical vapors and volatile organic compounds (VOCs).

SOLUTIONS

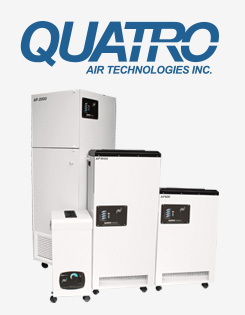

Designed to handle high concentrations of chemicals, gases, odors, particles and biological contaminants, the AF Air Purifiers deliver superior air quality for in vitro fertilization facilities.
The AF Air Purifiers are available as standalone units (standard configuration) for general air purification. For virtually any application that requires removal of chemicals, vapors and particles directly at the source, a vast selection of flexible or articulated arms, hoods and ducting accessories capture any contaminants before they spread into the environment. [Download AF Series PDF Brochure]

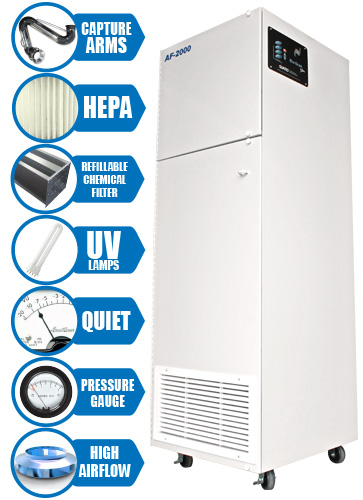

AF2000

Dimensions: H x W x D
71 x 24 x 26 (in), 350 lbs
180 x 61 x 66 (cm), 159 kg
Airflow (nominal):
1000 CFM (472 liters/s); adjustable intake/discharge grilles
HEPA filter:
99.97% of particles down to 0.3 micron;
Chemical filter:
up to 240 lbs (110 kg); 26 blends available
UV Light: Available for certain configurations
Power: 120V, 60Hz, 4A / 230V, 50Hz, 2A
Sound level: < 54dbA at low speed
Cabinet: Heavy gauge welded steel
Options: high air flow configurations; various diameter inlet/discharge collars for ducting, pressure gauges, custom filter sequences, OEM branding, variable speed control, audible alarms, visual alarms.

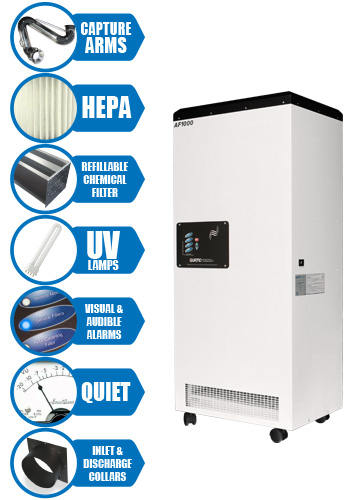

AF1000

Dimensions: H x W x D
52 x 16 x 22 (in), 200 lbs
132 x 40 x 56 (cm), 90 kg
Airflow (nominal):
600 CFM (283 liters/s); adjustable discharge grilles
HEPA filter:
99.97% of particles down to 0.3 micron
Chemical filter:
up to 100 lbs (45 kg); 26 blends available
UV Light: Available for certain configurations
Power: 120V, 60Hz, 2A / 230V, 50Hz, 1A
Sound levels: < 36dbA at low speed
Cabinet: Heavy gauge welded steel
Options: various diameter inlet/discharge collars for ducting, pressure gauges, custom filter sequences, OEM branding, variable speed control, audible alarms, visual alarms.


AF600

Dimensions: H x W x D
37 x 16 x 22 (in), 135 lbs
94 x 40 x 56 (cm), 61 kg
Airflow (nominal):
400 CFM (188 liter/s); adjustable discharge grilles
HEPA filter:
99.97% of particles down to 0.3 micron
Chemical filter:
up to 50 lbs (23 kg); 26 blends available
UV Light: Available in certain configurations
Power: 120V, 60Hz, 2A / 230V,50Hz, 1A
Sound levels: < 36dbA at low speed
Cabinet: Heavy gauge welded steel
Options: various diameter inlet/discharge collars for ducting, pressure gauges, custom filter sequences, OEM branding, variable speed control, audible alarms, visual alarms.

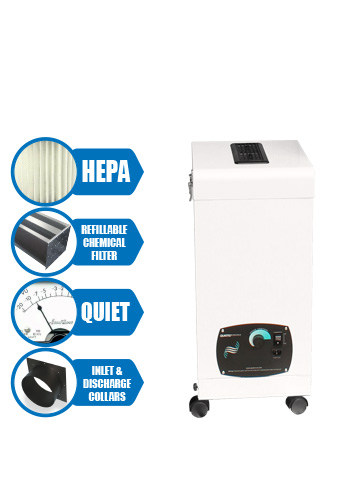

AF400

Dimensions: H x W x D
12 x 15 x 30 (in), 48 lbs
30 x 38 x 76 (cm), 22 kg
Airflow (nominal):
280 CFM (132 liters/s); adjustable discharge grilles
HEPA filter:
99.97% of particles down to 0.3 micron
Chemical filter:
up to 25 lbs (12 kg); 26 blends available
UV Light: Available in certain configurations
Power: 120V, 60Hz, 2A / 230V, 50Hz, 1A
Sound levels: < 36dbA at low speed
Cabinet: Heavy gauge welded steel
Options: various diameter inlet/discharge collars for ducting, pressure gauges, custom filter sequences, OEM branding, variable speed control, audible alarms, visual alarms.

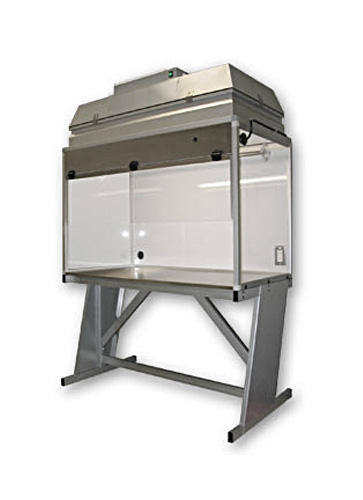

QHH

QUATRO HEPA HOOD
QHH

Body: Anodized aluminum extrusion with nylon connectors
Side panels: clear acrylic
Back panel: white polypropylene
HEPA filter:
99.97% of particles down to 0.3 micron

  • Better than ISO 5 conditions (class 100)
  • Fluorescent light fixture
  • Quick change disposable pre filters
  • Variable speed control
  • On/Off switches for lights and fans

Dimensions: W x D x H
QHH2: 24x25x30.25 in / 610x635x768 mm
QHH3: 36x25x30.25 in / 914x635x768 mm
QHH4: 48x25x30.25 in / 1219x635x768 mm
QHH5: 60x25x30.25 in / 1524x635x768 mm
QHH6: 73x25x30.25 in / 1854x635x768 mm
QHH8: 97x25x30.25 in / 2464x635x768 mm
